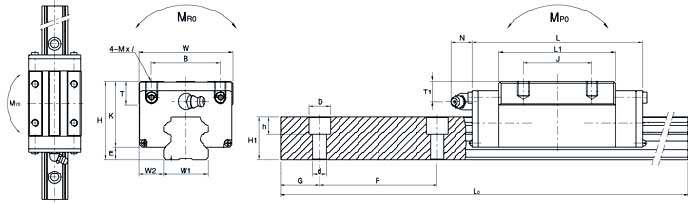

型 号 |
安装尺寸 |
滑块尺寸 |
高 |
E |
W2 |
宽 |
长 |
安装孔 |
L1 |
K |
T |
注油栓 |
H |
W |
L |
B×J |
M×l |
安装孔 |
T1 |
N |
SBG15SL |
28 |
3 |
9.5 |
34 |
58.8 |
26×26 |
M4×5 |
39 |
25 |
6 |
φ3 |
8.25 |
5 |
SBG20SL |
30 |
3.5 |
12 |
44 |
77.2 |
32×36 |
M×6 |
51 |
26.5 |
8 |
M6×0.75 |
5.5 |
10.5 |
SBG20SLL |
30 |
3.5 |
12 |
44 |
93.2 |
32×50 |
M5×6 |
66.8 |
26.5 |
10 |
M6×0.75 |
5.5 |
10.5 |
SBG25SL |
36 |
5 |
12.5 |
48 |
86.9 |
35×35 |
M×8 |
60 |
33.5 |
12 |
M6×0.75 |
10.8 |
10.5 |
SBG25SLL |
40 |
5 |
12.5 |
48 |
106.4 |
35×50 |
M6×8 |
79 |
33.5 |
12 |
M6×0.75 |
10 .8 |
10.5 |
SBG30SL |
42 |
6 |
16 |
60 |
99 |
40×40 |
M×10 |
71 |
39 |
12 |
M6×0.75 |
11.5 |
10.5 |
SBG30SLL |
45 |
6 |
16 |
60 |
121.5 |
40×60 |
M8×10 |
92.9 |
39 |
12 |
M6×0.75 |
11.5 |
10.5 |
SBG35SL |
48 |
7.5 |
18 |
70 |
111.6 |
50×50 |
M×12 |
81 |
47.5 |
15 |
M6×0.75 |
16.5 |
10.5 |
SBG35SLL |
55 |
7.5 |
18 |
70 |
137.1 |
50×72 |
M8×12 |
106 |
47.5 |
15 |
M6×0.75 |
16.5 |
10.5 |
SBG45SL |
60 |
8 |
20.5 |
86 |
140 |
60×60 |
M×17 |
98 |
62 |
15 |
PT 1/8 |
20.5 |
15 |
SBG45SLL |
70 |
8 |
20.5 |
86 |
172 |
60×80 |
M10×17 |
130 |
62 |
15 |
PT 1/8 |
20.5 |
15 |
SBG55SL |
70 |
10.5 |
23.5 |
100 |
164 |
75×75 |
M×18 |
118 |
69.5 |
18 |
PT 1/8 |
22 |
15 |
SBG55SLL |
80 |
10.5 |
23.5 |
100 |
202 |
75×95 |
M12×18 |
156 |
69.5 |
18 |
PT 1/8 |
22 |
15 |
SBG65SL |
90 |
17.5 |
31.5 |
126 |
193 |
76×70 |
M×20 |
147 |
72.5 |
23 |
PT 1/8 |
15 |
15 |
SBG65SLL |
90 |
17.5 |
31.5 |
126 |
253 |
76×120 |
M16×20 |
207 |
72.5 |
23 |
PT 1/8 |
15 |
15 |
型 号 |
导 轨 尺 寸 |
负 荷 能 力 |
重 量 |
宽 |
高 |
间距 |
螺 孔 |
G |
导轨最大长度 |
动负载 |
静负载 |
静态力矩（kgf.m） |
滑块 |
导轨 |
W1 |
H1 |
F |
d×D×h |
L0Max |
C(N) |
C0(N) |
MR0 |
MP0 |
Mr0 |
(kg) |
(kg/m) |
SBG15SL |
15 |
15 |
60 |
4.5×7.5×5.3 |
20 |
3,000 |
8,330 |
13,426 |
7 |
5 |
5 |
0.2 |
1.45 |
SBG20SL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4,000 |
14,210 |
25,088 |
22 |
18 |
18 |
0.33 |
2.2 |
SBG20SLL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4,000 |
16,905 |
36,554 |
29 |
32 |
32 |
0.45 |
2.2 |
SBG25SL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4,000 |
20,972 |
39,200 |
36 |
32 |
31 |
0.56 |
3.1 |
SBG25SLL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4,000 |
24,667 |
48,069 |
44 |
50 |
49 |
0.73 |
3.1 |
SBG30SL |
28 |
25 |
80 |
9×14×12 |
20 |
4,000 |
29,204 |
53,802 |
60 |
50 |
49 |
0.98 |
4.45 |
SBG30SLL |
28 |
25 |
80 |
9×14×12 |
20 |
4,000 |
35,300 |
67,904 |
75 |
81 |
80 |
1.28 |
4.45 |
SBG35SL |
34 |
29 |
80 |
9×14×12 |
20 |
4,000 |
38,808 |
68,698 |
96 |
75 |
73 |
1.63 |
6.4 |
SBG35SLL |
34 |
29 |
80 |
9×14×12 |
20 |
4,000 |
46,070 |
90,405 |
126 |
133 |
131 |
2.12 |
6.4 |
SBG45SL |
45 |
38 |
105 |
14×20×17 |
22.5 |
4,000 |
61,642 |
110,662 |
202 |
159 |
157 |
2.96 |
11.25 |
SBG45SLL |
45 |
38 |
105 |
14×20×17 |
22.5 |
4,000 |
75,597 |
138,552 |
250 |
238 |
235 |
3.75 |
11.25 |
SBG55SL |
53 |
45 |
120 |
16×23×20 |
30 |
4,000 |
91,209 |
156,918 |
344 |
274 |
270 |
4.52 |
15.25 |
SBG55SLL |
53 |
45 |
120 |
16×23×20 |
30 |
4,000 |
111,847 |
196,666 |
427 |
413 |
405 |
5.68 |
15.25 |
SBG65SL |
63 |
58.5 |
150 |
18×26×22 |
35 |
3,300 |
147,980 |
240,100 |
629 |
495 |
484 |
6.55 |
23.9 |
SBG65SLL |
63 |
58.5 |
150 |
18×26×22 |
35 |
3,300 |
189,140 |
320,460 |
834 |
850 |
830 |
9.4 |
23.9 |
|
|
